Be at one with the foil
Whether winging at speed, laying deep carves on a wave face or pumping and linking up swells on a downwinder. AXIS Power Carbon masts enter a new realm of control and connection between board and foil.
High aspect foils = higher loads on masts
During early ART foil testing, the AXIS research team quickly realized that higher aspect ratios and broader foil spans applied more bending and twisting forces to the mast. So while ART foils were a game-changer even on the existing masts, they knew there was still huge untapped potential to be realized.
And so began a whole new development project, which they couldn’t be more excited at the result. With a new power profile and carefully considered material selection and placement, AXIS Power Carbon delivers both superior stiffness with next-level strength.
Opting for a one-piece design, they avoided the flow/drag and jointing issues associated with multi-part mast constructions. Additionally, and more importantly, testing proves that maximum loading is concentrated close to the baseplate and this is why the mast tapers thicker at this point to handle the loads. Any joins or two-piece construction at this high load area would destroy the integrity of the mast.
A revised fuselage connection design maximizes the size of the attachment point to achieve a perfect fit to the fuselage reducing any chance of unwanted movement. The result is a positive connected feel, direct drive, immediate feedback and ultimate control. High aspect foils perform as they should, feel and control enter an entirely new realm.
Choose your Power level
The new AXIS Power Carbon masts are available in two models, the Power Carbon and Power Carbon – High Modulus, the latter providing additional strength and 35% more bend resistance than our industry-leading 19mm aluminium mast. The High Modulus will be the mast of choice for the most discerning rider seeking ultimate performance, and heavier riders using our larger span foils.
With AXIS Power Carbon masts, riders will finally be at one with the foil.

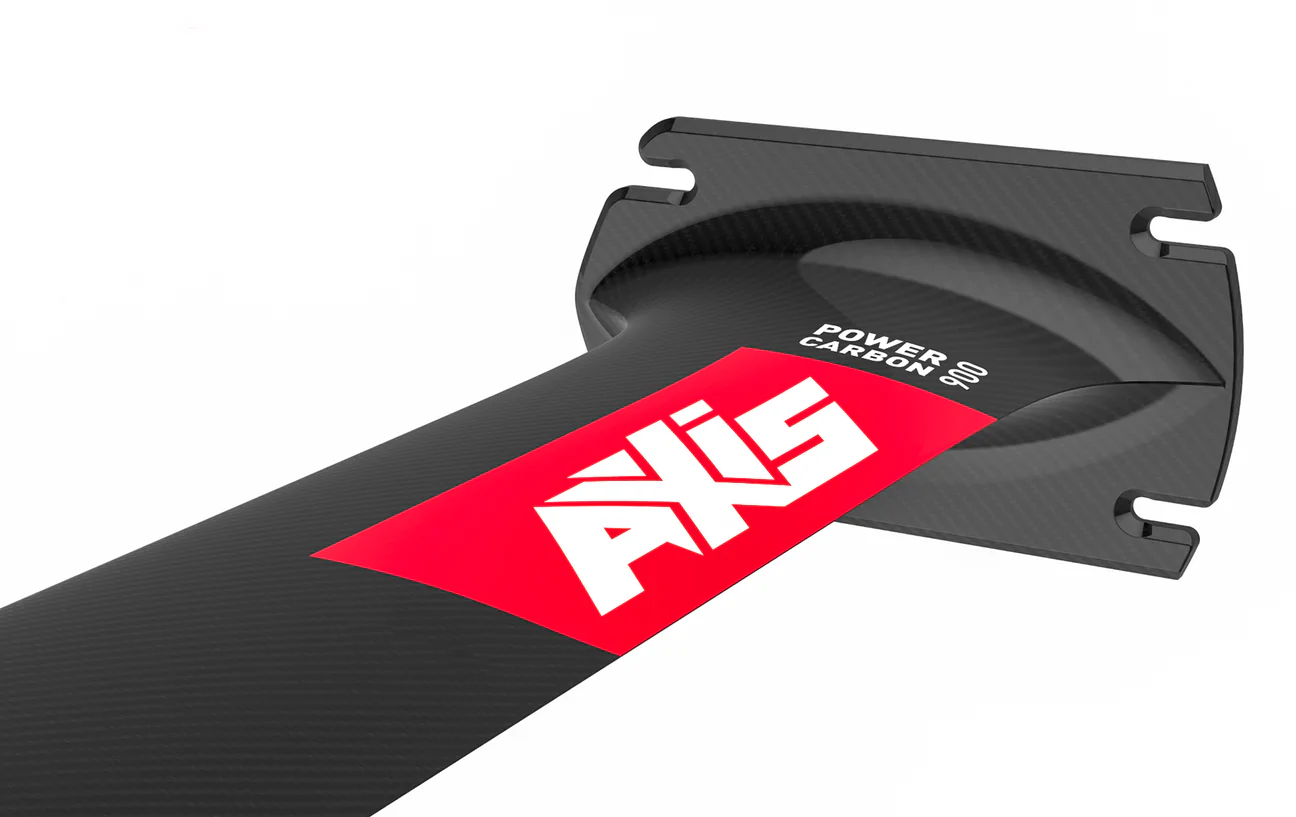

AXIS Power Carbon masts have a new and greatly improved base connection design. While fully compatible with all existing Red and Black fuselages, a new installation technique/method is required, this involves simply inserting the mast leading edge first into the fuselage opening, then rotating the trailing edge down. Removal is done in reverse, trailing edge rotates out first… super simple!
Remember to use only 30mm M8 bolts to attach the fuselage to Power Carbon masts

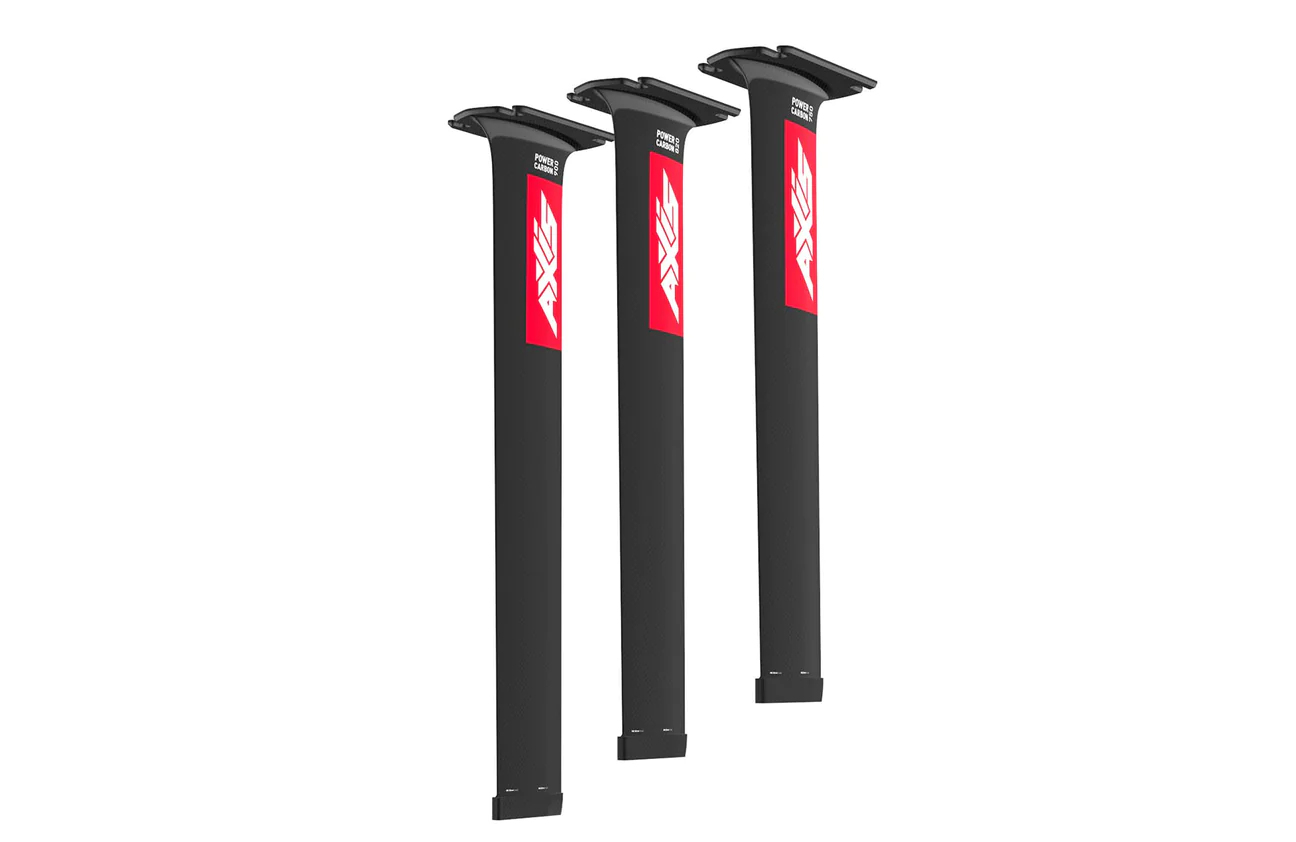

Sizes
102cm – For wide high aspect front foils, big wave and tow-ins, wing foil, wind foil and kite foil.
90cm – For wide high aspect front foils, big wave and tow-ins, downwinder pros in open ocean, great for wing foil, wind and kite foil.
82cm – Ideal for bigger surf, downwinders and advanced riding with all foils.
75cm – For wing foil or a great ‘surfy’ option for kit foiling, good for shallow areas.
