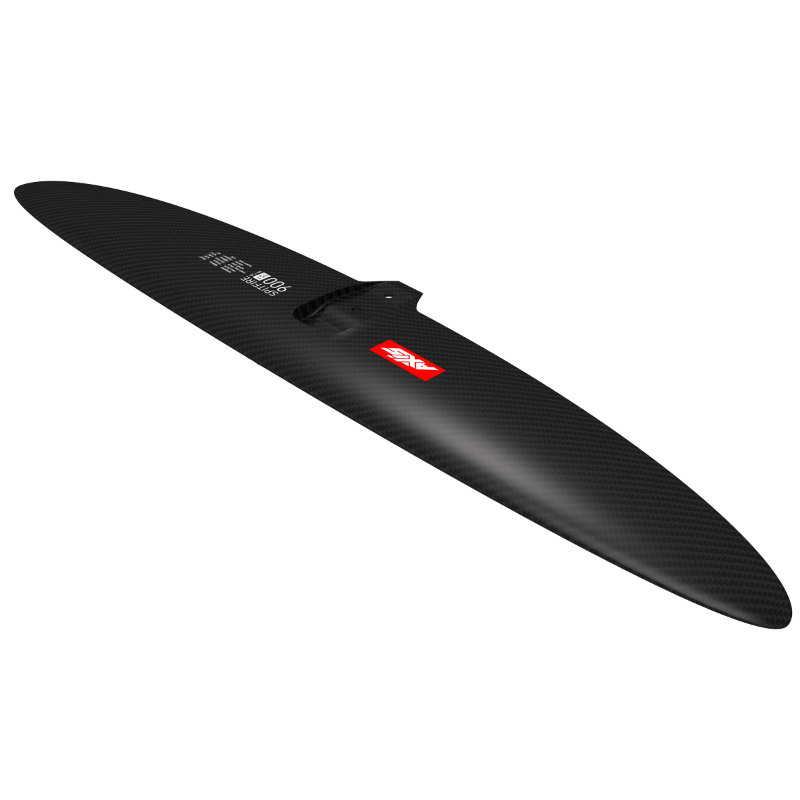

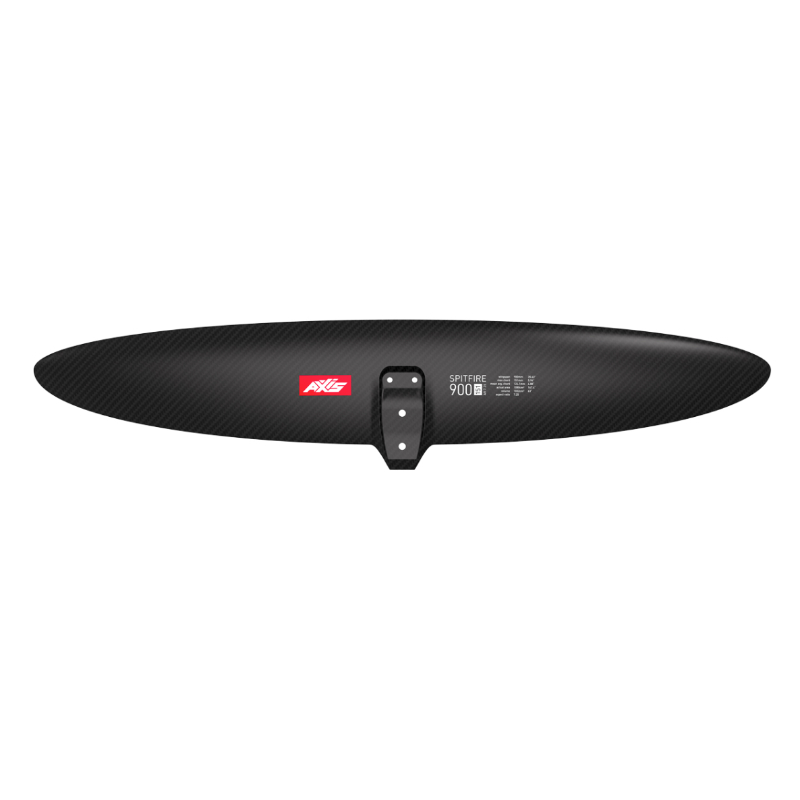

AXIS Spitfire Front Wings
This was a much anticipated front wing from AXIS – it is a new dedicated surf wing combining the modern profiles and glide performance learnt from the ART Pro but tuned to turn. If you are looking to get into wave riding and carving then this is the wing to look at. The smaller sizes especially will really deliver in the surf, whether proning or winging.
The larger sizes have become the go-to models for SUP Foil and Downwinding. Plenty of early lift with tonnes of ability to carve – the ease of use makes them perfect to learn to downwind on, especially in places with confused water states (ie. The UK!).
Imagine a dedicated surf foiling wing, that lets you foil waves like a surfer would.
An effortless turning wing, that inspires confidence when dropping in, that has a gentle, predictable easy lift up onto foil. A foil that not only handles breaches but encourages them. No wave is the same, sometimes you need a turn of speed, and on another, you need to slow right down but stay on foil. A wing you can just forget about and get on with the business of enjoying yourself. Of course, that wing has to be capable of pumping you back out to do it all again and again. The wait is over, meet the AXIS Spitfire.
You’ll recognise it by its distinctive elliptical outline, straight median line and lack of aggressive turndown through the tips. Moderate chord lengths, that taper smoothly from the centre to the tips, encourage smooth, predictable but precise turning. Reduced foil thickness for enhanced top end to compliment the greater chords providing easy low end.
Many of these attributes are shared by the ARTPRO Range of wings, and in fact much of what was learned in the development of that line fed into the Spitfire’s make-up.

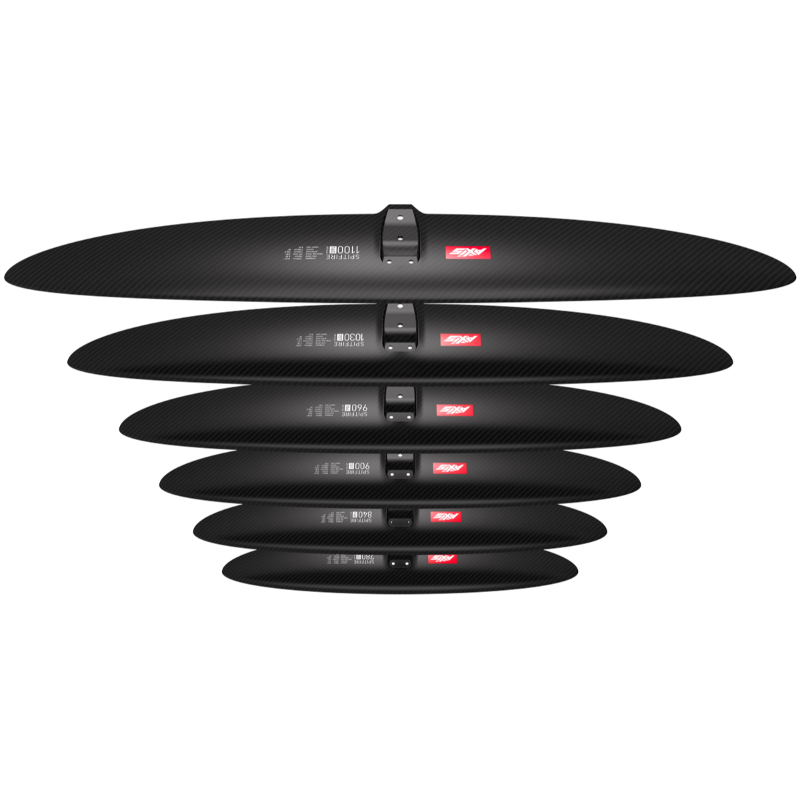

Through the development process, the Spitfire was put through its paces. The smaller sizes are fast with explosive turning. The larger sizes are great for smaller spots and larger riders. The Spitfires are versatile front wings, able to ride waves or flat water across prone, SUP, winging, wake, downwind, lake pumping and kite foiling disciplines.
The AXIS Spitfire foils are ideally matched with the Advance black fuselage and Progressive or Skinny rear wing ranges.
AXIS SPITFIRE WINGS ARE ONLY COMPATIBLE WITH THE BLACK SERIES FUSELAGES
Specification
WINGSPAN | CHORD | AREA | ASPECT RATIO | VOLUME |
1180 mm | 165 mm | 1554 cm | 9.13 | 1637 cm |
1100 mm | 160 mm | 1423 cm | 8.66 | 1406 cm |
1030 mm | 157 mm | 1308 cm | 8.26 | 1270 cm |
960 mm | 154 mm | 1196 cm | 7.84 | 1142 cm |
900 mm | 151 mm | 1080 cm | 7.25 | 1032 cm |
840 mm | 148 mm | 1006 cm | 7.14 | 928 cm |
780 mm | 145 mm | 902 cm | 6.87 | 811 cm |
720 mm | 142 mm | 816 cm | 6.47 | 720 cm |
