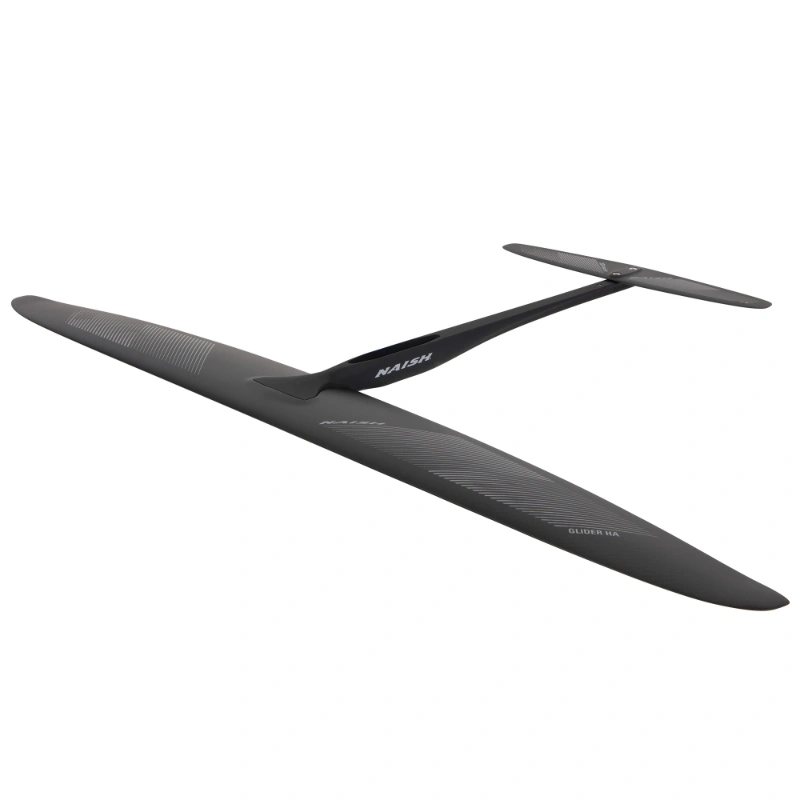

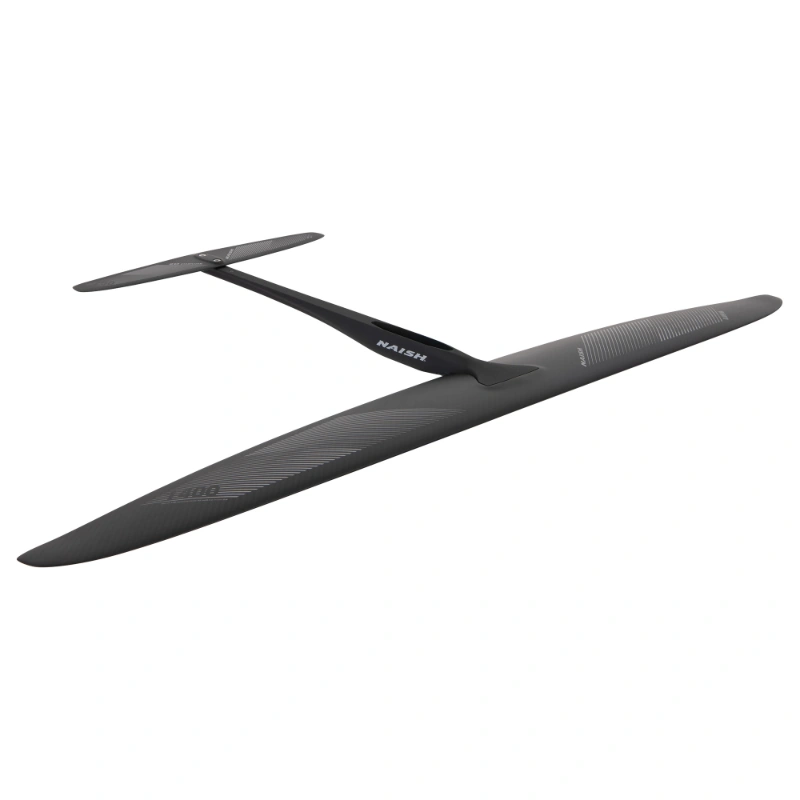

The NAISH Glider HA is a newly designed pump foil that specializes in dock starts and low-effort, light wind downwinding. The large wingspan and high aspect ratio foils provide high lift and low stall speed, making it possible to effortlessly pump and glide for long distances.
In order to accommodate this larger wingspan, a new “”Hammer Head”” fuselage front wing connection has been designed to provide a very stable connection, instant response, and reduces any flex. The Dual expansion foam core construction with UD and 3K carbon layup provides ultimate stiffness at low weight.
Features:
- Large Wingspan Foil
- Provides high lift at low speeds and maximized glide.
- Hammer Head Joint Connection to Fuselage
- Creates an ultra-stiff connection between the fuselage and the front wing, providing more lateral support that is needed to accommodate the wide wingspan.
- 100% Prepreg 3K Carbon Outer Layer Satin Finish
- Durable and lightweight construction.
- Dual Expansion Core Construction
- Molded lightweight layup utilizing UD and 3K carbon Laminate.
Contents
- Glider HA Front Wing 1400/1800
- 2D Stabiliser 250
- Glider HA Fuselage
- 4x 30mm M6 torx and track nuts
Specifications:
| Front Wing | Front Wingspan (cm) | Projected Surface Area (cm2) |
Aspect Ratio | Plane Weight (KG) |
| Glider HA 1400 | 115 | 1400 | 9,45 | 2.142 |
| Glider HA 1800 | 130 | 1800 | 9,4 | 2,594 |
